Façade and Wall Cladding
Façade and Wall Cladding
Transform your building’s exterior with MESHTEC™ Façade and Wall Cladding, crafted from precision-engineered perforated aluminium sheets for a sleek, modern aesthetic and long-lasting durability. Designed for both function and style, our cladding systems offer a refined architectural finish while delivering excellent protection against the elements.
Premium-Grade Materials for Superior Strength
Choose from two high-performance aluminium options to suit your project needs:
5005-H34 Grade Aluminium – excellent corrosion resistance and ideal for decorative architectural applications
5052 Grade Aluminium – higher strength and formability for demanding environments
Both materials offer outstanding durability, making them suitable for residential, commercial, and public sector projects.
Choose from two high-performance aluminium options to suit your project needs:
5005-H34 Grade Aluminium – excellent corrosion resistance and ideal for decorative architectural applications
5052 Grade Aluminium – higher strength and formability for demanding environments
Both materials offer outstanding durability, making them suitable for residential, commercial, and public sector projects.
Exceptional Finish & Weather Resistance
Our advanced powder coating system ensures your cladding retains its appearance and integrity over time, even in harsh climates.
Our advanced powder coating system ensures your cladding retains its appearance and integrity over time, even in harsh climates.
QUV Accelerated Weathering Test: 1000+ hours – proven resistance to UV degradation
Salt Spray Test: 3000+ hours – exceptional protection against corrosion in coastal or industrial environments
These certifications guarantee long-term performance, colour stability, and a consistently smooth, high-quality finish.
Salt Spray Test: 3000+ hours – exceptional protection against corrosion in coastal or industrial environments
These certifications guarantee long-term performance, colour stability, and a consistently smooth, high-quality finish.
Ideal Applications:
• Architectural facades and curtain walls
• Decorative exterior wall cladding
• Sunshades and privacy screens
• Interior feature walls and ceilings
• Architectural facades and curtain walls
• Decorative exterior wall cladding
• Sunshades and privacy screens
• Interior feature walls and ceilings
Designed for Architects. Engineered to Last.
MESHTEC™ ’s Façade and Wall Cladding solutions bring together form, function, and durability—offering a modern finish that stands the test of time. Whether you’re enhancing a new development or modernizing an existing structure, MESHTEC™ delivers a façade system that performs as beautifully as it looks.
MESHTEC™ ’s Façade and Wall Cladding solutions bring together form, function, and durability—offering a modern finish that stands the test of time. Whether you’re enhancing a new development or modernizing an existing structure, MESHTEC™ delivers a façade system that performs as beautifully as it looks.
Standard Perforated Patterns
| No. | Pattern Code | Shape | Hole Diameter (mm) | Pitch (mm) | Open Area (%) | Max Width |
|---|---|---|---|---|---|---|
| 1 | R2-T3-O1 | Round | 2.00 | 3.00 | 40.30 | 2000 mm. |
| 2 | R2.38 -T3.57-O1 | Round | 2.38 | 3.57 | 40.40 | 1500 mm. |

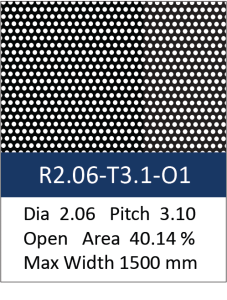

| 3 | R2.06-T3.1-O1 | Round | 2.06 | 3.10 | 40.14 | 1500 mm. |
| 4 | R2.38-M6.74-O1 | Round | 2.38 | 6.74 | 9.79 | 1500 mm. |
| 5 | R6.35-T7.94-O1 | Round | 6.35 | 7.94 | 58.13 | 1500 mm. |
| 6 | R3.25-T5.59-O1 | Round | 3.25 | 5.59 | 30.72 | 1500 mm. |
| 7 | R9.5-T12.7-O1 | Round | 9.50 | 12.70 | 50.86 | 1500 mm. |
| 8 | R8-T11.11-O1 | Round | 8.00 | 11.11 | 47.13 | 1200 mm. |

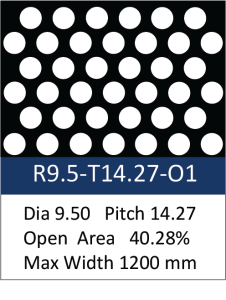

| 9 | R9.5-T14.27-O1 | Round | 9.50 | 14.27 | 40.28 | 1200 mm. |

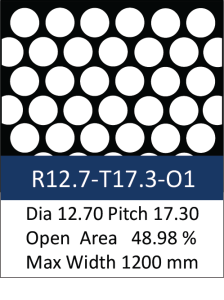

| 10 | R12.7-T17.3-O1 | Round | 12.70 | 17.30 | 48.98 | 1200 mm. |
| 11 | R3.17-T4.76-O1 | Round | 3.17 | 4.76 | 40.31 | 1200 mm. |
| 12 | R4.8-T6.35-O1 | Round | 4.80 | 6.35 | 51.93 | 1200 mm. |
| 13 | CD5.56-U12.7×12.7-O1 | Diamond | 7.70 | 12.70 | 19.17 | 1200 mm. |
| 14 | R1.6-T2.5-O1 | Round | 1.60 | 2.50 | 37.23 | 1200 mm. |
| 15 | R6.35-T9.53-O1 | Round | 6.35 | 9.53 | 40.35 | 1200 mm. |
| 16 | R4.8-T6-O1 | Round | 4.80 | 6.00 | 58.17 | 1200 mm. |
| 17 | R3.17-T5.56-O1 | Round | 3.17 | 5.56 | 29.55 | 1200 mm. |
| 18 | LR7.62×20.23-Z30.5×25.23-O1 | Cylinder | 7.62 | 25.23 | 36.82 | 900 mm. |
| 19 | R4-T7.62-O1 | Round | 4.00 | 7.62 | 25.05 | 650 mm. |

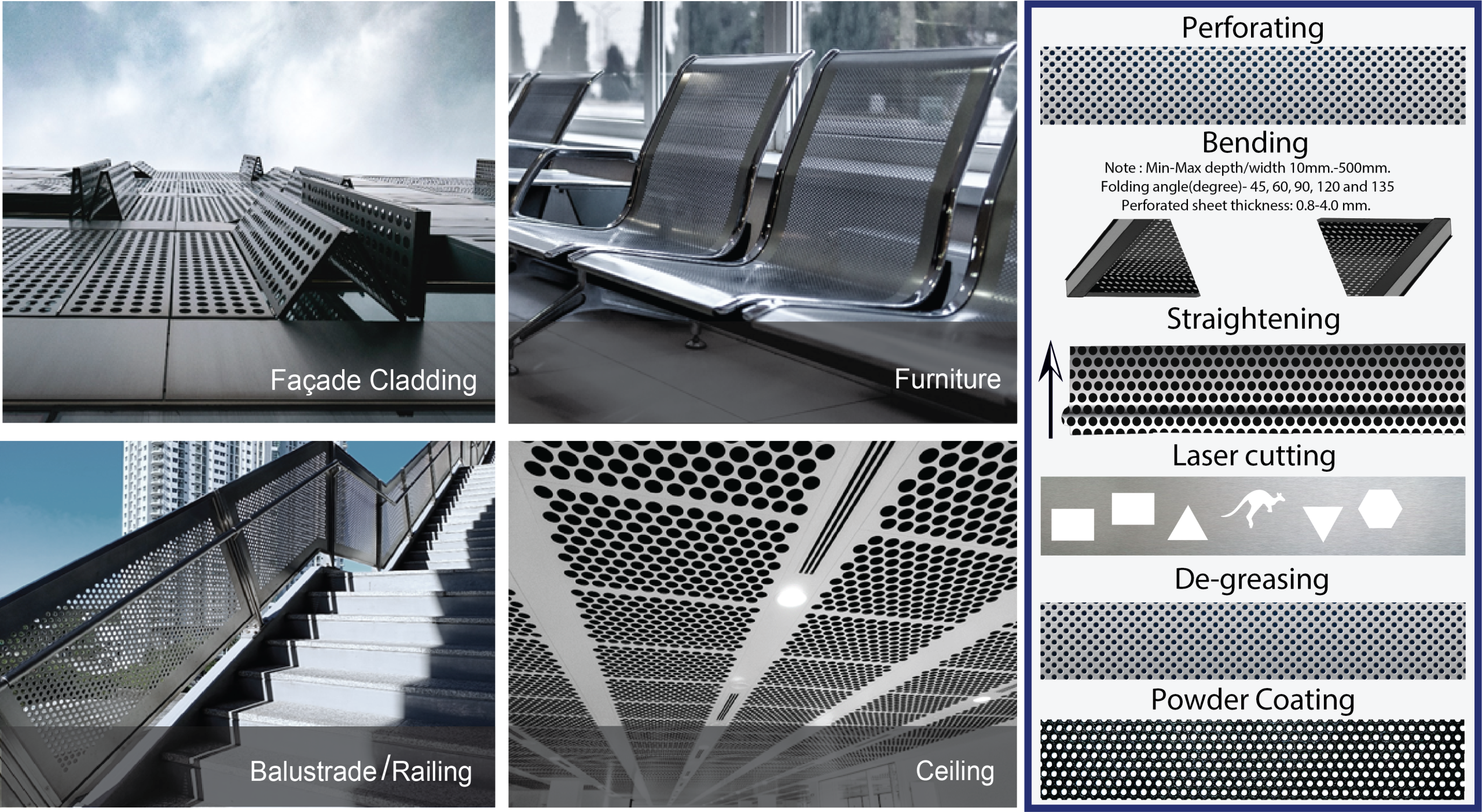

Machining Service
Performance and Testing
| PERFORMANCE | STANDARD |
|---|---|
| Tensile Strength | JIS Z 2241:2011 |
| Spectrometer | ASTM E1086 |
| Corrosion Resistance (Salt Spray) | ASTM B117-11 |
| Powder Coating | QUALICOAT ASTM B117 AS3715/ISO2813, AS2331/ISO2360 ISO1519 ASTM D 2794 |
| QUV weathering | ASTM D 4587 ASTM D 5894 |
Benefit of MESHTEC™ Perforated Aluminium Product
Stainless Steel Mesh Powder Coating
MESHTEC™ is proud to be the first and only Interpon D Platinum Approved Applicator for stainless steel substrates, a prestigious certification awarded by AkzoNobel that underscores our commitment to superior quality and performance.
Aluminium Profile 9 Standard Colors
