Fall Prevention Screen

PRODUCTS

Originally designed to prevent accidental falls from windows at height, MESHTEC™ Fall Prevention Screens offer a smart safety solution—especially for families with young children. These screens feature a finely woven, architectural-grade stainless steel mesh that provides clear, unobstructed views while acting as a strong barrier to reduce the risk of falling.

Unlike traditional window restrictors, our screens allow for increased natural airflow, helping to cool and ventilate your home without compromising safety or aesthetics.

Ideal for:

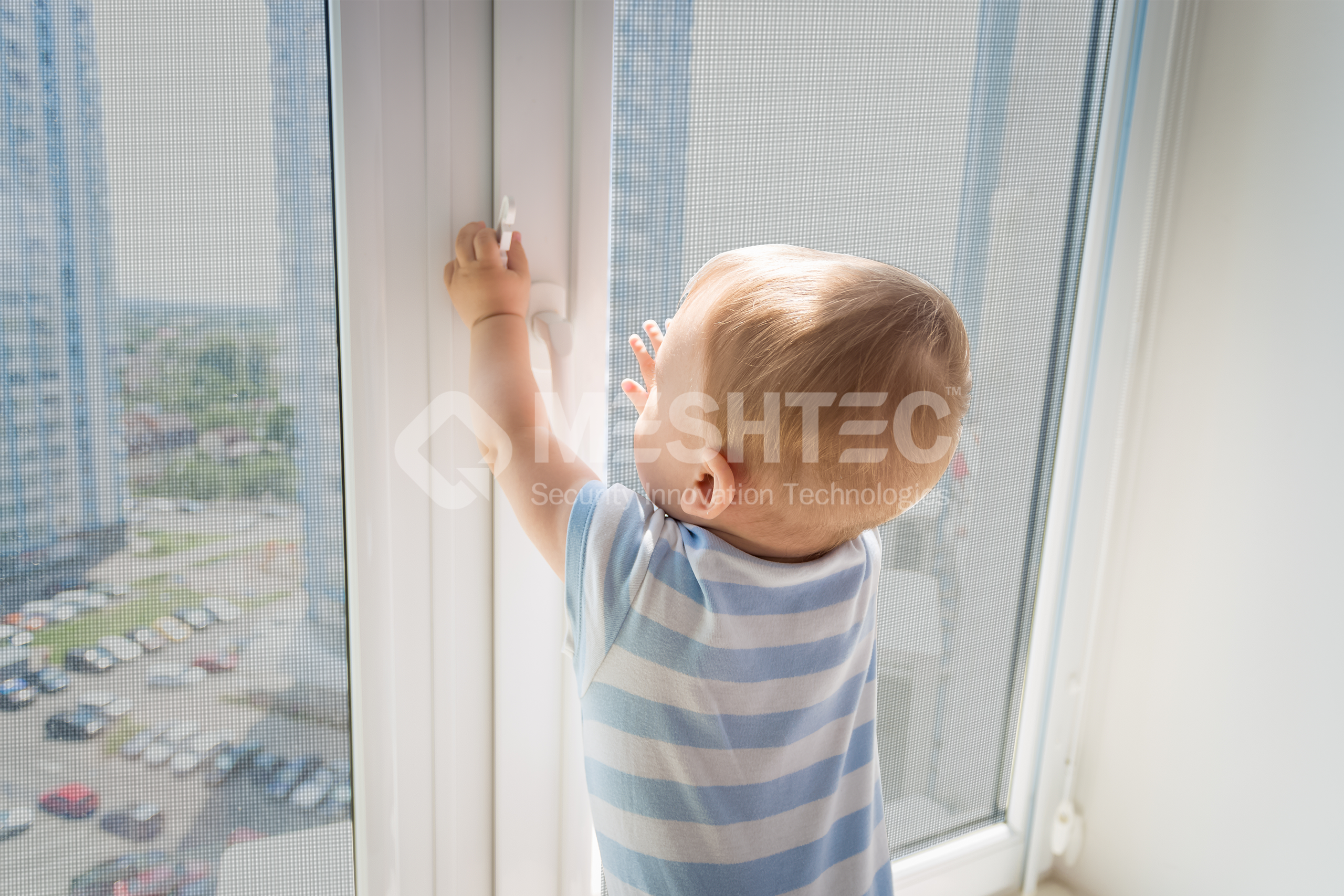

• Fall prevention in upper-storey windows
• Homes where enhanced safety is needed upstairs, but full security screens are only desired on the ground floor

MESHTEC™ Fall Prevention Screens combine safety, airflow, and visual clarity—without the need for heavy-duty security on every level of your home.

Technical Specification

Frame	6063 T5 Alluminium Alloy
Mesh	High Tensile Stainless Steel 304 Grade
Wire Diameter	0.6 mm.
Retention System	MESHTEC™ System
Aperture Size	1.4 mm
Open Area/Air Flow	51
Viewing Angle	156 degrees
Fall Prevention Test	Yes
Mosquito Protection	100%
Powder Coating	Polyester Poder Coating
Corrosion Resistance	High Corrosion Resistance Surpass Salt Spray Test 3000hours

Performance and Testing

PERFORMANCE	STANDARD
Tensile Strength	JIS Z 2241:2011
Spectrometer	ASTM E1086
Fall Prevention Test	AS 5203
Corrosion Resistance (Salt Spray)	ASTM B117-11
Powder Coating	QUALICOAT ASTM B117 AS3715/ISO2813, AS2331/ISO2360 ISO1519 ASTM D 2794
QUV weathering	ASTM D 4587 ASTM D 5894
UV Reduction	LUX Intensity Test
Temperature Reduction	Solar Heat Test
Mosquito proof	Mosquito protection test (CMU Lab)

Benefit of MESHTEC™ Fall Prevention Screens

Inspiration

Stainless Steel Mesh Powder Coating

MESHTEC™ is proud to be the first and only Interpon D Platinum Approved Applicator for stainless steel substrates, a prestigious certification awarded by AkzoNobel that underscores our commitment to superior quality and performance.
