Hurricane Doors & Windows
Hurricane Doors & Windows
The X-Treme Series represents the pinnacle of storm protection, engineered specifically to withstand the most demanding weather conditions. Manufactured using authentic high-tensile stainless steel mesh—available in 1.0 mm or 1.2 mm wire diameters, 304 grade—the X-Treme Series offers exceptional strength and resistance against hurricane-force impacts at speeds up to 24 m per second.
Each door and window screen is precisely designed and expertly assembled utilizing MESHTEC™’s patented mesh retention system. This advanced technology ensures superior protection, long-term durability, and a refined aesthetic suitable for modern architectural styles.
Ideal for residential applications requiring the highest level of security and performance, the X-Treme Series sets a new industry standard for hurricane-rated screen systems.
Technical Specification
| Frame | 6063 T5 Alluminium Alloy |
| Mesh | High Tensile Stainless Steel 304 Grade |
| Wire Diameter | 1.0mm/1.2mm |
| Retention System | Patented MESHTEC™ System |
| Aperture Size | 1.8mm/2.0mm |
| Open Area/Air Flow | 40%/38% |
| Viewing Angle | 160 degrees |
| Lockset | European 3-Point Lock |
| Cyclone/Hurricane Test | Yes |
| Security Screen Australian Standard 5039 Tested and Certified |
Yes |
| Knife Shear Test | Pass |
| Dynamic Impact Test | Pass |
| Jemmy Test | Pass |
| Mosquito Protection | 98% |
| Powder Coating | Polyester Powder Coating- Black |
| Corrosion Resistance | High Corrosion Resistance Surpass Salt Spray Test 3000Hrs |
Applications
Hinged Door

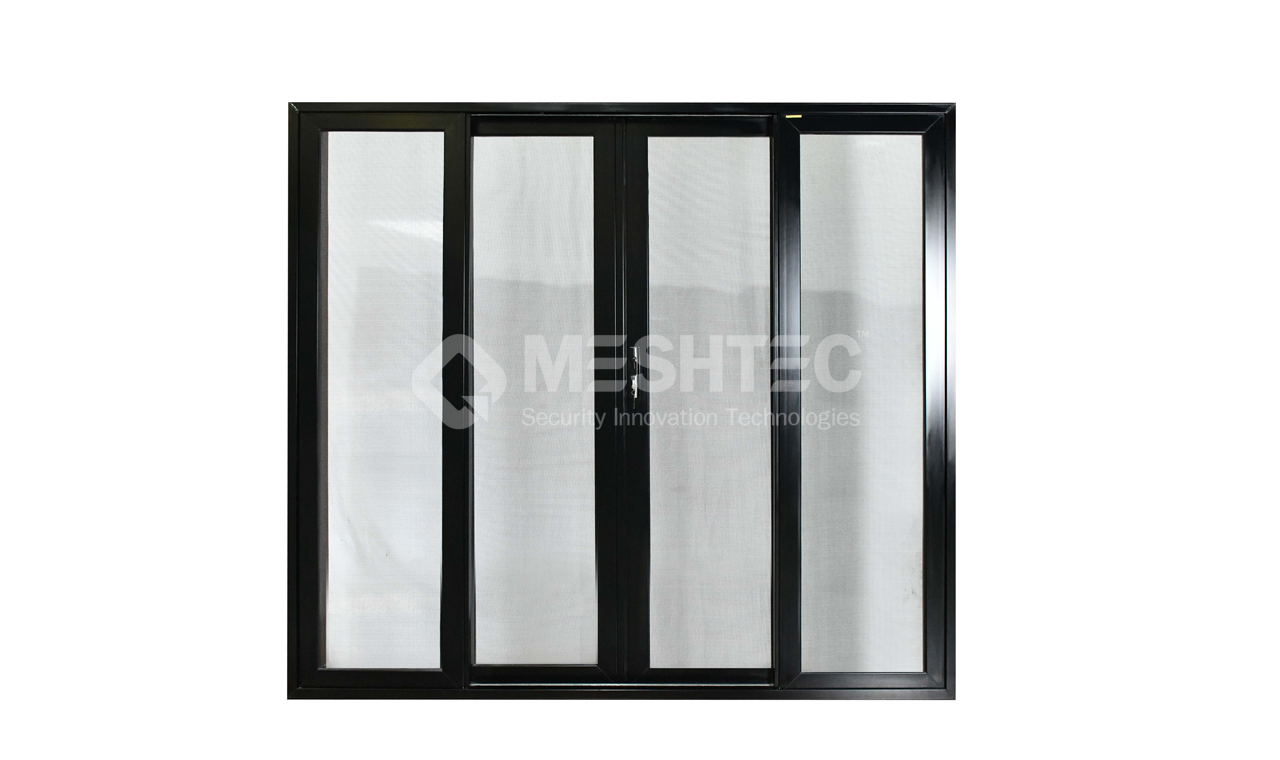

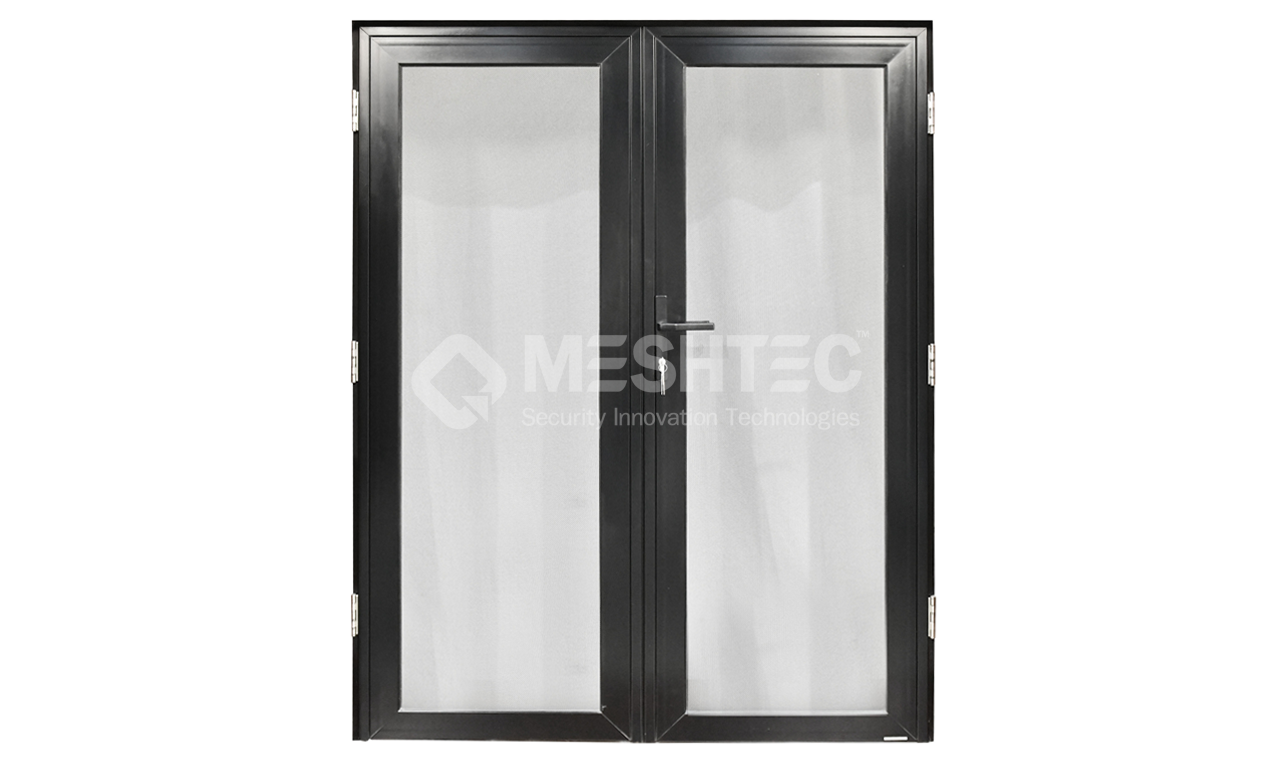

French Door and Window
Sliding Door and Window
Bi-fold Door

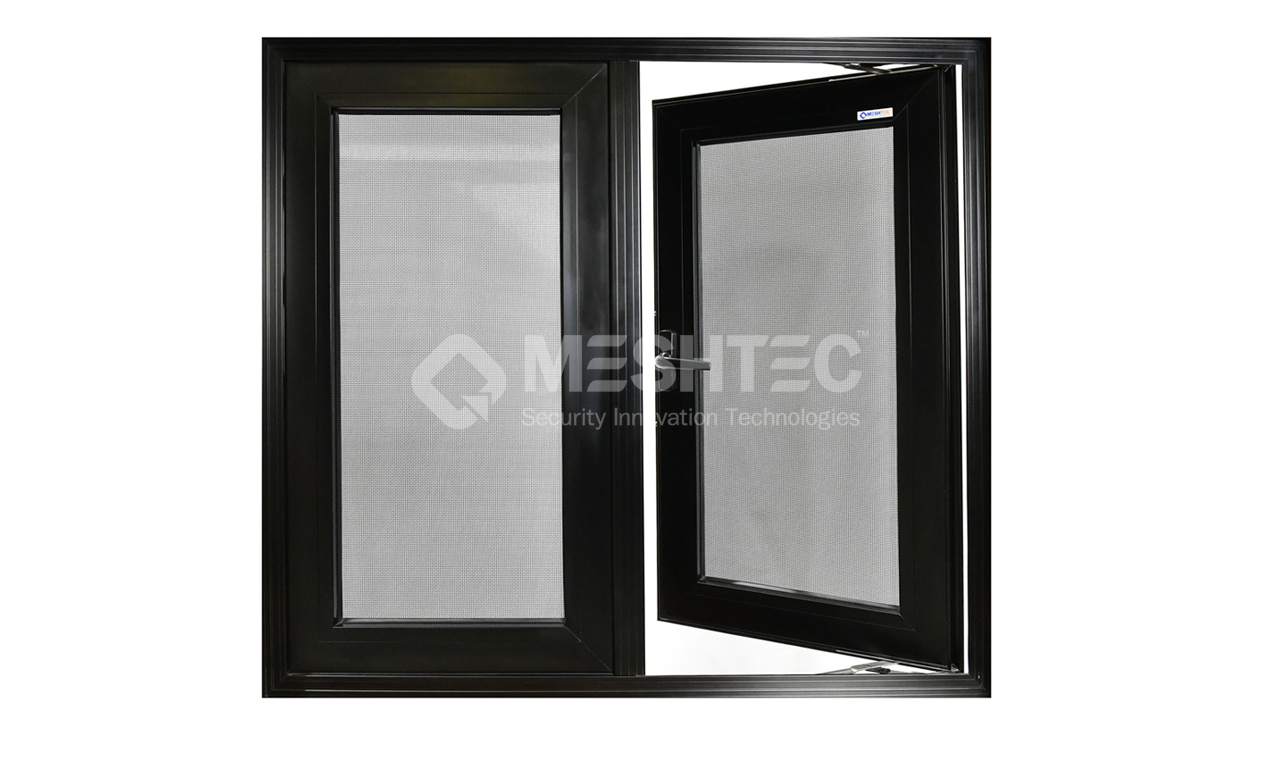

Casement Window
Awning Window
Double Hung Window

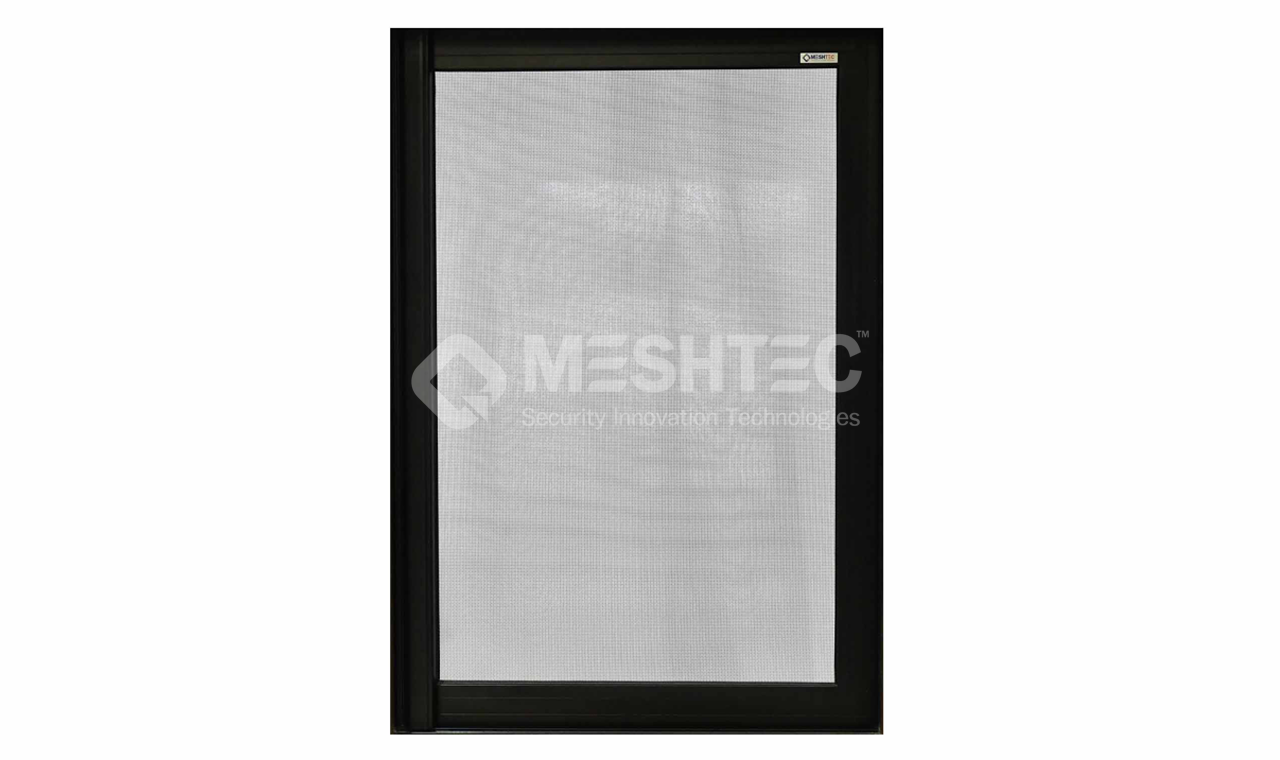

Fixed Window
Inspiration
Performance and Testing
| PERFORMANCE | STANDARD |
|---|---|
| Large Missile test | ASTM E 1886 |
| Cyclone Test | AS/NZS 1170.2 |
| Tensile Strength | JIS Z 2241:2011 |
| Spectrometer | ASTM E1086 |
| Knife Shear Resistance | AS 5039.1/AS 5039.3/AAMA1901-25 |
| Dynamic Impact Resistance | AS 5039.1/AS 5039.3/SMA 6001/AAMA1901-25 |
| Jemmy Resistance | AS 5039.1/AS 5039.3/SMA 6001/AAMA1901-25 |
| SAG test | SMA 6001 |
| Corrosion Resistance (Salt Spray) | ASTM B117-11 |
| Powder Coating | QUALICOAT ASTM B117 AS3715/ISO2813, AS2331/ISO2360 ISO1519 ASTM D 2794 |
| QUV weathering | ASTM D 4587 ASTM D 5894 |
| UV Reduction | LUX Intensity Test |
| Temperature Reduction | Solar Heat Test |
| Hardware Durability | AS 4145.2 |
| Mosquito proof | Mosquito protection test (CMU Lab) |
Benefit of MESHTEC™ Hurricane Screens
Stainless Steel Mesh Powder Coating
MESHTEC™ is proud to be the first and only Interpon D Platinum Approved Applicator for stainless steel substrates, a prestigious certification awarded by AkzoNobel that underscores our commitment to superior quality and performance.
Aluminium Profile 9 Standard Colors
Warranty
