Security Doors & Windows

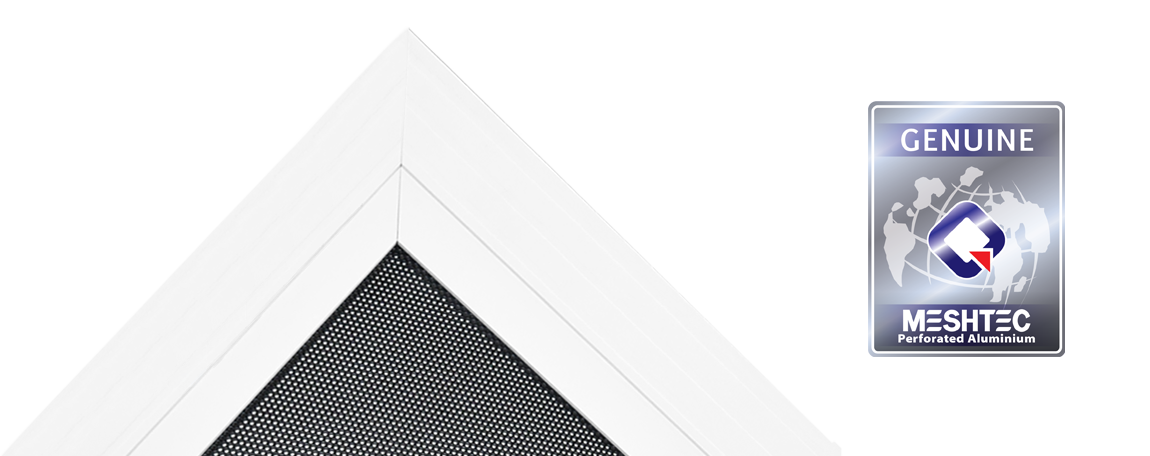

The Perf Series security doors and windows are manufactured using perforated aluminium sheet, engineered to deliver exceptional strength, protection with affordable price. Each security screen door and window screen is meticulously designed and assembled utilizing MESHTEC™ ’s wedge mesh retention system. MESHTEC™ perforated aluminium is suitable for variety of applications that offers high quality and surpasses international standards.
Technical Specification
| Frame | 6063 T5 Alluminium Alloy |
| Infill | Perforated Aluminium 5005-H34Grade or 5052-H32Grade |
| Pattern Type | Round holes-Staggered Centers |
| Hole Diameter | 2.0mm |
| Pitch | 3.0mm |
| Sheet Thickness after coating | 1.6mm/1.2mm |
| Retention System | MESHTEC™ Wedge System |
| Open Area/Air Flow | 40% |
| Viewing Angle | 119 degrees |
| Lockset | 3-Point Lock |
| Security Screen Australian Standard 5039 Tested and Certified |
Yes |
| Knife Shear Test | Pass |
| Dynamic Impact Test | Pass |
| Jemmy Test | Pass |
| Mosquito Protection | 98% |
| Powder Coating | Polyester Powder Coating-Black |
| Corrosion Resistance | High Corrosion Resistance Surpass Salt Spray Test 3000Hrs |
Applications
Performance and Testing
| PERFORMANCE | STANDARD |
|---|---|
| Tensile Strength | JIS Z 2241:2011 |
| Spectrometer | ASTM E1086 |
| Knife Shear Resistance | AS 5039.1/AS 5039.3/AAMA1901-25 |
| Dynamic Impact Resistance | AS 5039.1/AS 5039.3/SMA 6001/AAMA1901-25 |
| Jemmy Resistance | AS 5039.1/AS 5039.3/SMA 6001/AAMA1901-25 |
| SAG test | SMA 6001 |
| Corrosion Resistance (Salt Spray) | ASTM B117-11 |
| Powder Coating | QUALICOAT ASTM B117 AS3715/ISO2813, AS2331/ISO2360 ISO1519 ASTM D 2794 |
| QUV weathering | ASTM D 4587 ASTM D 5894 |
| UV Reduction | LUX Intensity Test |
| Temperature Reduction | Solar Heat Test |
| Hardware Durability | AS 4145.2 |
| Mosquito proof | Mosquito protection test (CMU Lab) |
Benefit of MESHTEC™ Security Screens
Perforated Aluminium Sheet Powder Coating
MESHTEC™ is proud to be the Interpon D Platinum Approved Applicator on Aluminium substrate Chromate Free on 5005, 5052, 6060, and 6063., a prestigious certification awarded by AkzoNobel that underscores our commitment to superior quality and performance.
Aluminium Profile 9 Standard Colors
Warranty
